VOXATIV Z-Bass²

The only woofer fast enough to match the pace and purity of Voxativ drivers.

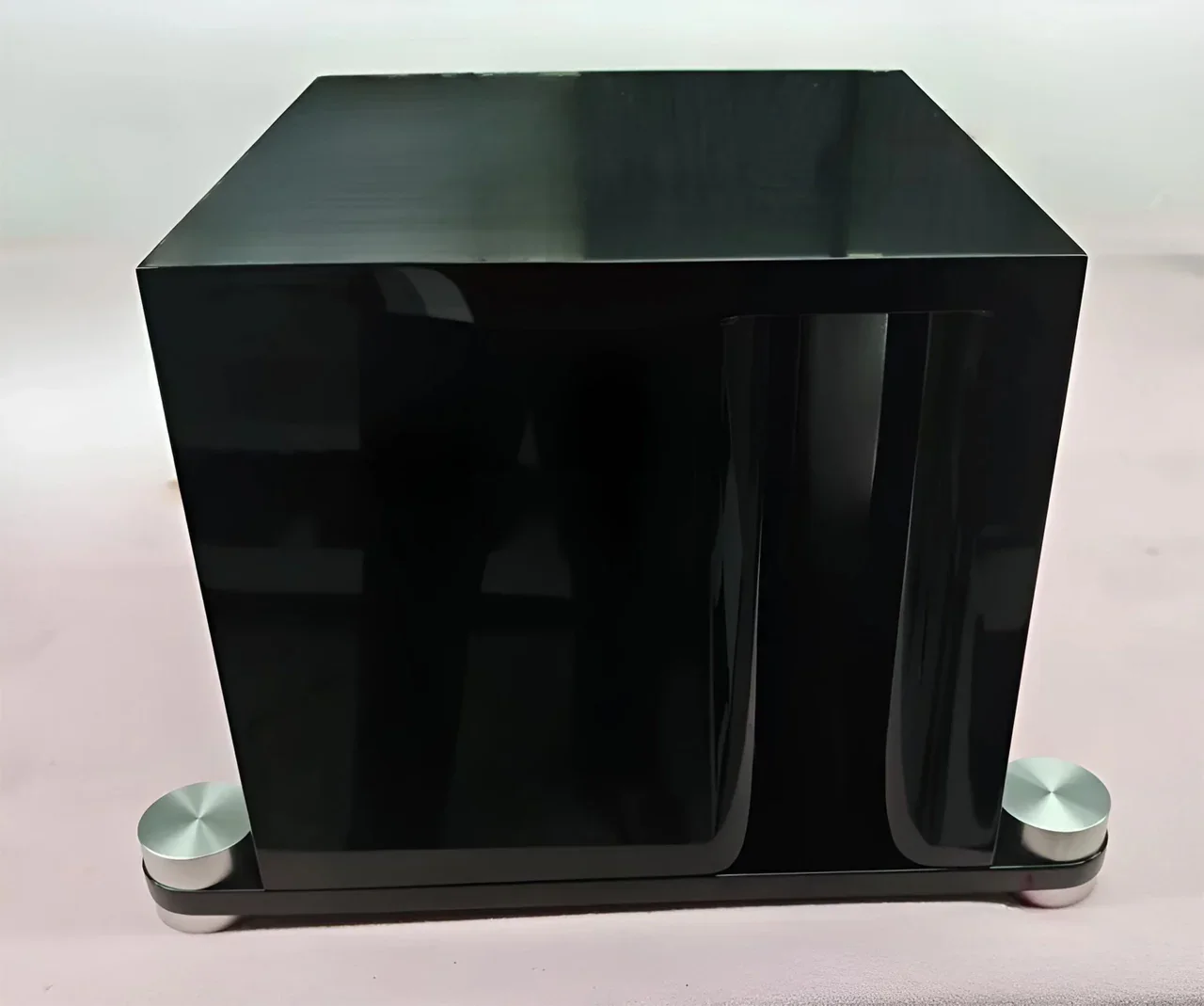

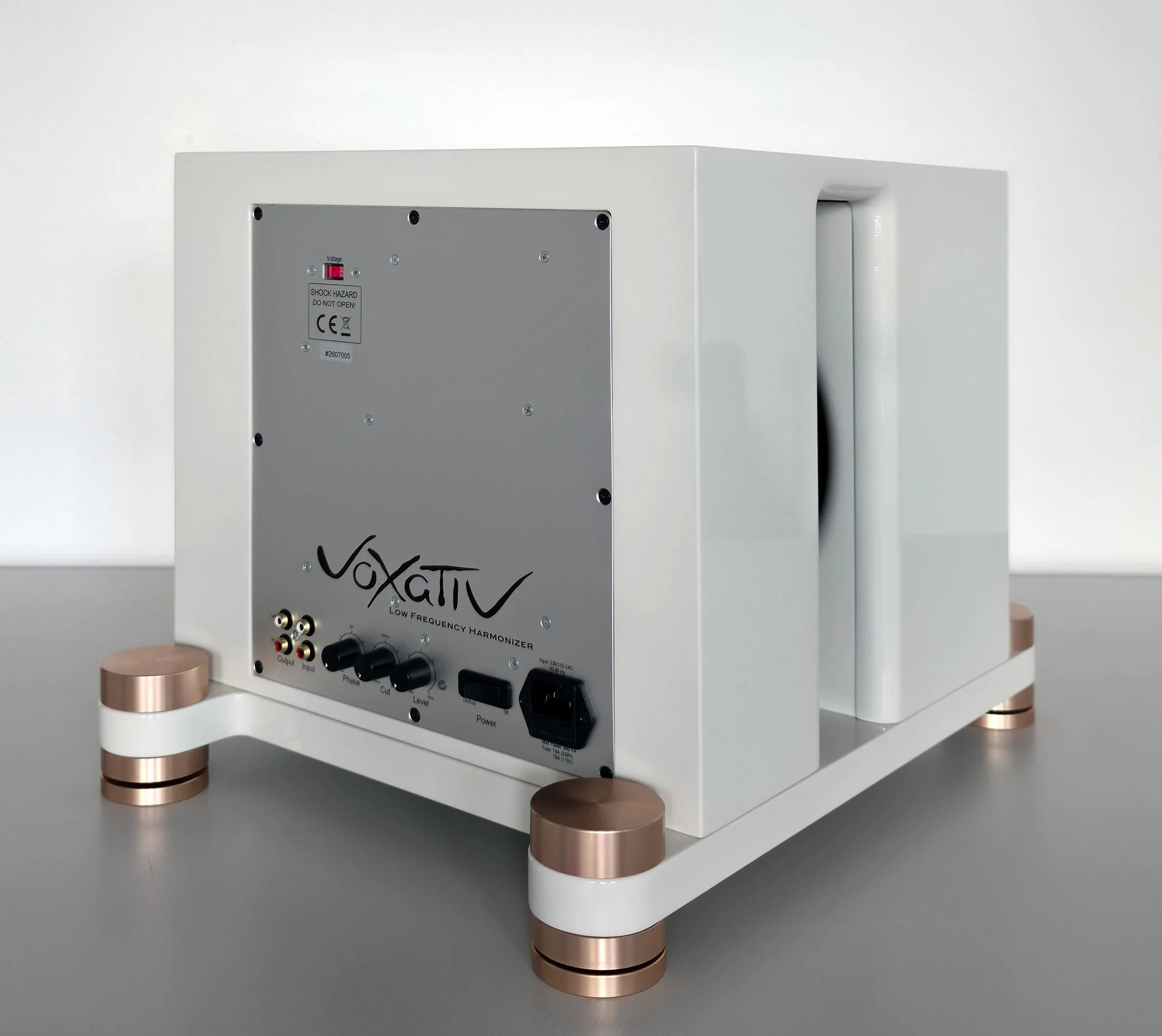

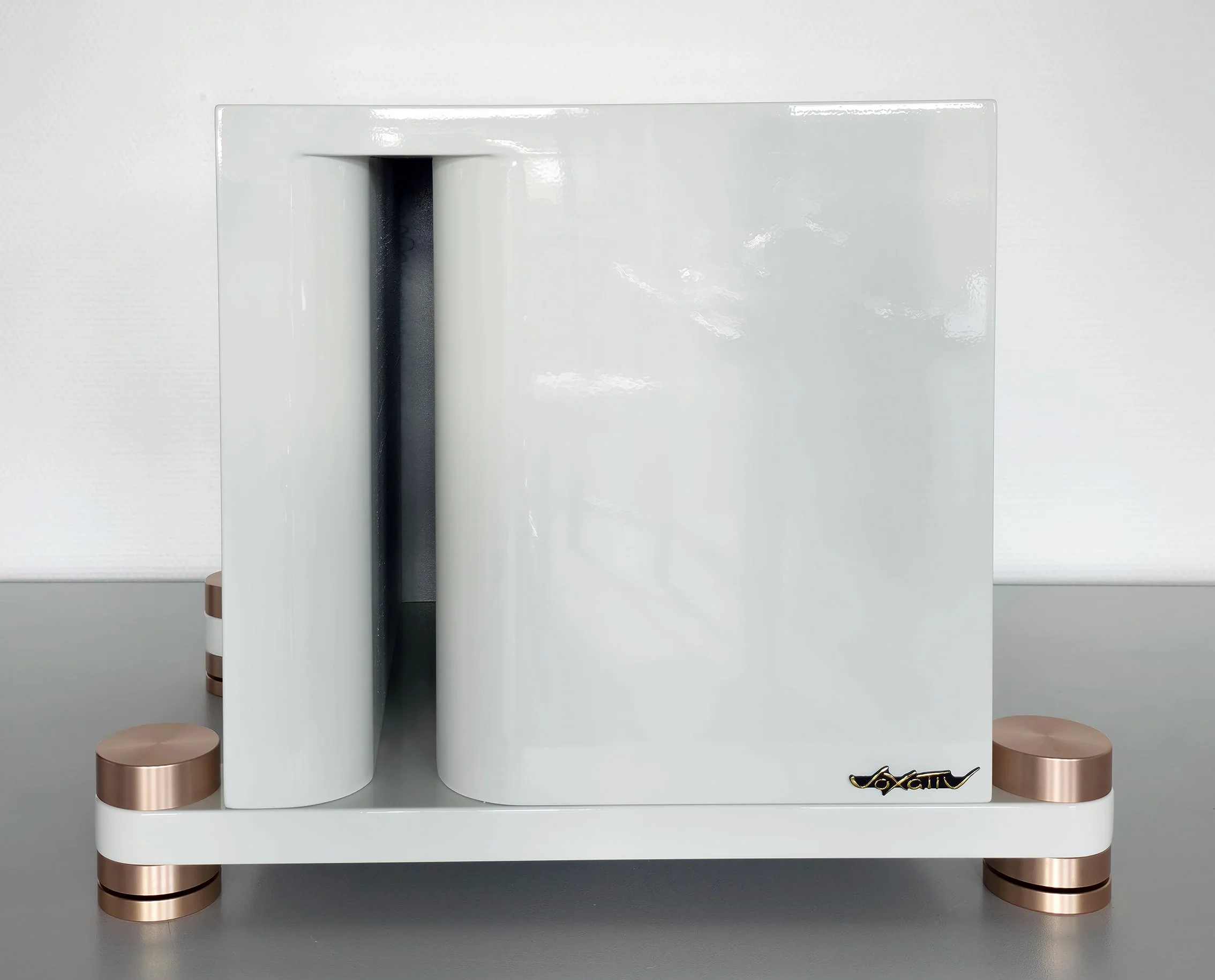

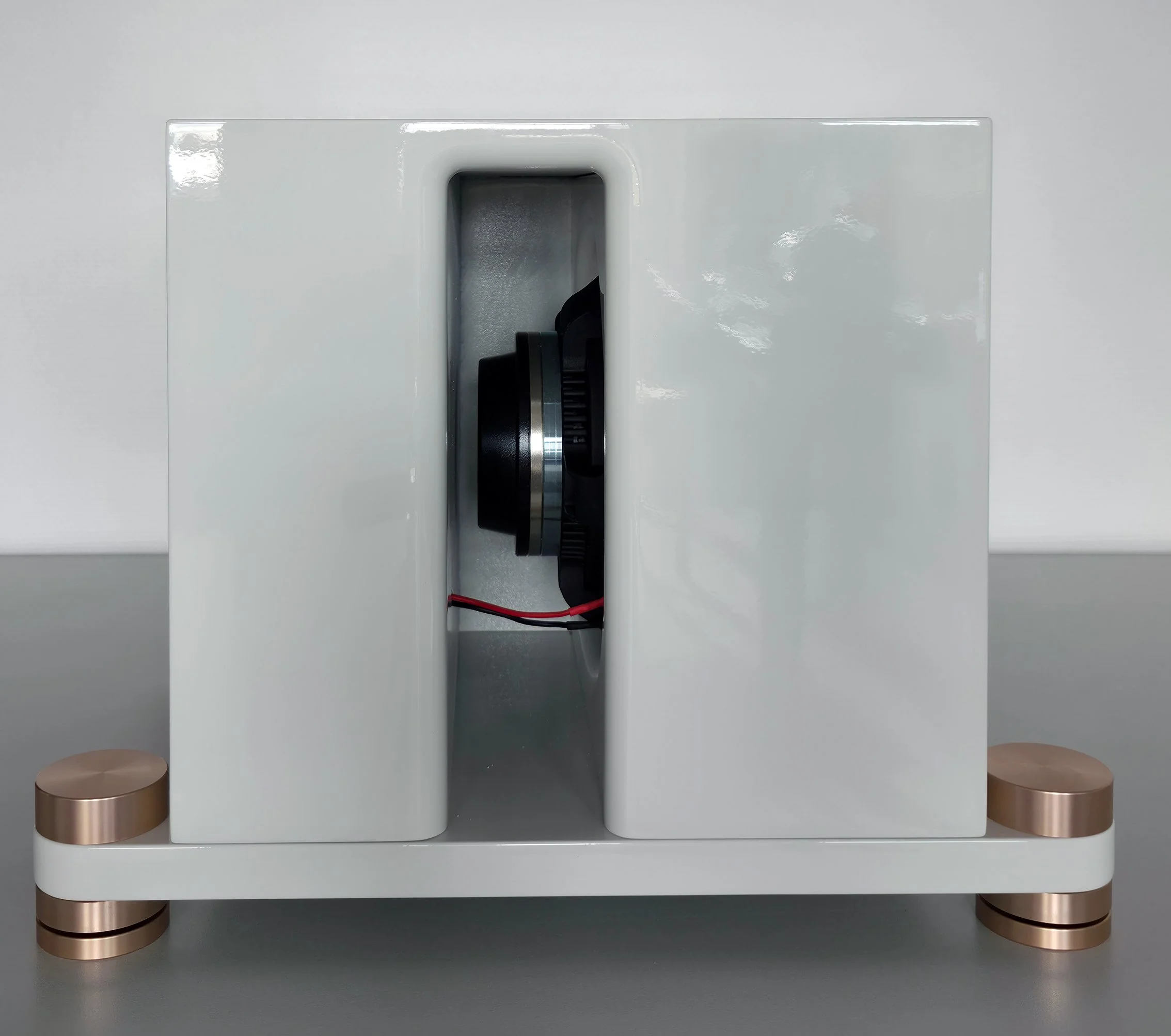

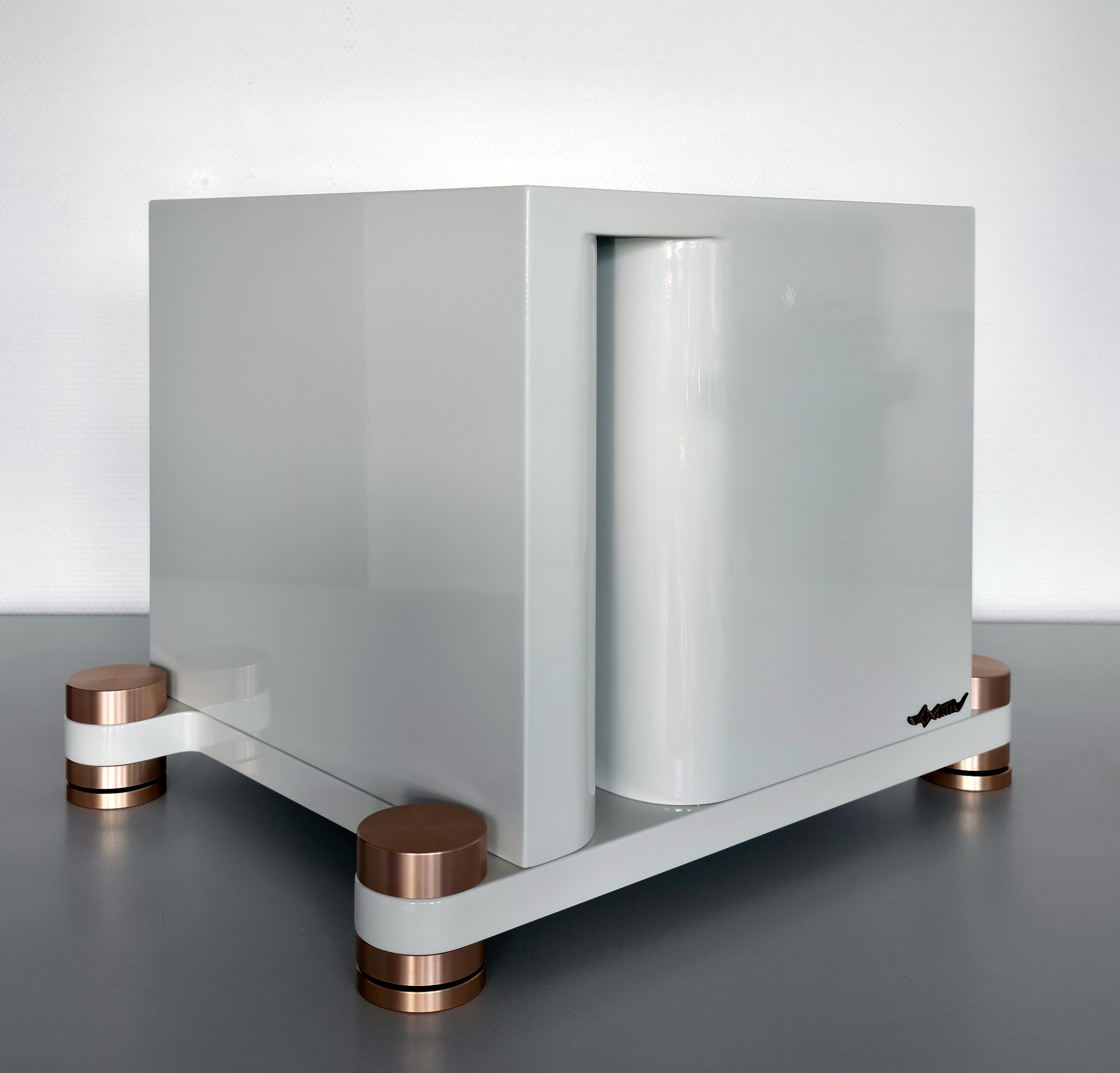

Voxativ Z-Bass²

The new Voxativ Z-Bass² is not just another subwoofer – it is a statement in bass reproduction.
As a specially engineered H-frame application, this masterpiece elevates low-frequency performance to a level of breathtaking precision and emotional impact.

Details:

  • Newly developed woofer, suspended in a 60 mm plywood frame

  • A Powerful 500 W Voxativ Class D amplifier

  • Massive 60 mm cabinet walls for absolute resonance control

  • Unmatched performance, resolution and musical authority

  • A perfect match for any widebander or electrostatic loudspeaker

The Z-Bass² doesn’t just extend the frequency range – it completes the musical picture. With effortless depth, speed, and articulation, it brings foundation and truth to music in a way that feels both natural and profoundly moving.

🔎 Read more about our H-frame technology:



Double Z-Bass²

More bass for larger rooms: The Voxativ Z-Bass² is now also available in a dual-unit configuration, offering greater bass headroom for rooms up to 20 m². Want to find the right setup for your listening room? Contact us — we’ll be happy to advise you.



Important: Z-Bass Room Size and Setup

The Voxativ Z-Bass is a compact RiPol bass system with the following room size limits:

  • Up to 14 m²: One Z-Bass².

  • Above 15 m² and up to 25 m²: Two Z-Bass² units are required or double Z-Bass².

  • Above 25 m²: The larger Voxativ Pi-Bass system is required.

Correct phase adjustment is essential. Incorrect phase alignment with the main speakers can cause cancellation, making the bass sound too weak. Always check the phase before increasing the volume. Compensating with excessive gain can cause the powerful 500-watt amplifier to drive the bass drivers beyond their mechanical limits, resulting in bottoming out and possible damage.



AST

Acoustic Stealth Technology

Each bass module is carefully tuned with AST® – our proprietary housing design that absorbs unwanted reflections and lets the music breathe, clear and undistorted.

learn more

Z–BASS IN DETAIL

Technical Data

Frequency Response:
20 - 180 Hz

Driver:
VOXATIV AC-Z2

Efficiency:
96 dB / 1W / 1 m

Capacity:
500 W sinus

Dimensions (W x H x D):
14 × 14 × 15" (40×40×43cm)

Color:
Black or White Piano Finish
Available left or right front slot

Weight:
35 lbs (28kg)
